Outer Shell Injection Mold

We have rich experience in manufacturing Outer shell injection mold in good quality, and we has specialized in precision plastic mould and plastic part manufacture for years, serving global customers. We are expecting to become your long term partner in China.

Send Inquiry    PDF DownLoad

Product Description

Outer Shell Injection Mold from China Manufacturers

 In an effort to finest meet up with client's requirements, all of our operations are strictly performed in line with our motto "High High quality, Competitive Rate, Fast Service" for Wholesale Discount China Manufacturer Precision Custom Designed Outer shell injection mold, Welcome your enquiry, best service will be provided with full heart.
Wholesale Discount China Mold,  Mould, We welcome an opportunity to do business with you and hope to have pleasure in attaching further details of our products and solutions. Excellent quality, competitive price, punctual delivery and dependable service can be guaranteed. For further inquires please do not hesitate to contact us.

We have rich experience in manufacturing Outer shell injection mold in good quality, and we has specialized in precision plastic mould and plastic part manufacture for years, serving global customers. We are expecting to become your long term partner in China.

Outer shell injection mold

1.Outer Shell Injection Mold Introduction

We can customize the Outer shell injection mold based on customer drawing and specification specially.

We adopt integrated ERP system to plan and control the whole process for a project from quotation to DFM, design, manufacture, test, production and delivery.

We have advanced precision facilities and professional experienced project team to ensure our mold in good quality with on-time delivery.

We are endeavoring to become one of the leaders in the field of mould manufacturing in the world.

2.Outer Shell Injection Mold Parameter (Specification)

Mould Details

Item Name

Customized Outer shell injection mold ISO9001

Mould Material

1.2343,NAK80, S136, SKD61, 2738, H13, 718H, 738H, P20, 1.2311etc

Product Material


Cavity No.

Single or Multi cavities

System Of Runner

Hot runner, Cold runner, Pin-point gate, Submarine gate,Edge gate, Fan gate etc

Hot runner

Husky / INCOE / Syventive / HRS / YUDO/ EWIKON / Mold-Master hot runner

Ejector Type

Ejector pin, Ejector plate, Hydro-cylinder, etc


DME / HASCO / Meusburger / LKM / Futaba / Misumi / Progressive standard etc

Lead Time

35-55 Days

Cycle Life

500-1000000 shots

Mould Design Software

UG, ProE, Solidworks, AutoCAD, Moldflow, ect

3.Outer Shell Injection Mold Feature And Application

We can customize different size and geometry Outer shell injection mold in different molding material with variant texture surface or colors.

· Household appliances

· TV, Air-condition, refrigerator, washing machine etc.

· Electronic devices

· Electrical connectors

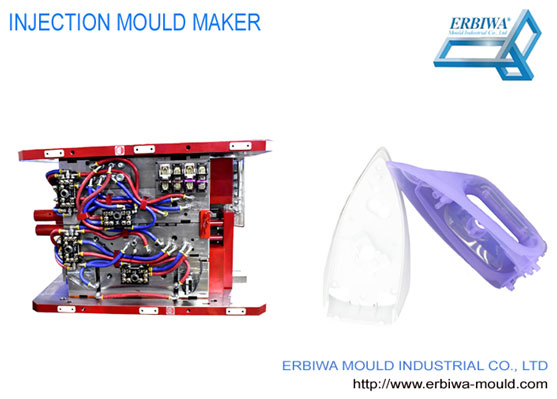

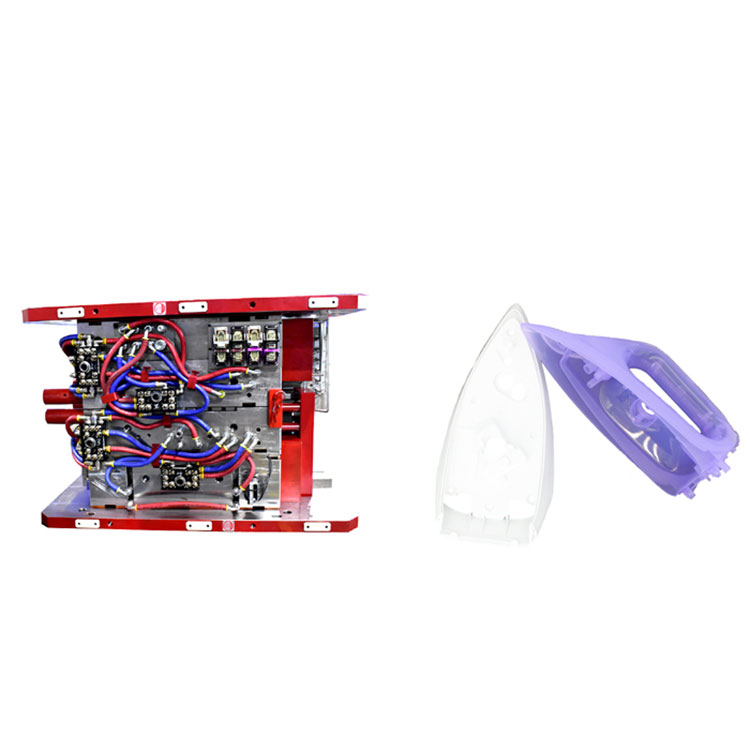

4.Outer Shell Injection Mold Details

Name: Outer shell injection mold ISO9001 certificated

Runner: hot runner Sub gate,

cavity/core steel: imported H13 steel

moulding material:PP.   Color: customized color

Cavity: 1+1

Standard: HASCO

Surface finishing: General polishing

Tool life: one million shots

5.Outer Shell Injection Mold Qualification

We are ISO9001:2015 and IATF16949 certificated precision plastic injection mold maker and moulding company.

6.Deliver,Shipping And Serving

Our QC will 100% inspect the mold and parts before shipping and provide detailed inspection report.

After pass inspection, we will carefully clearn the mold and parts.

1).For moulds, they will be coated one-layer anti-rust oil firstly,and then covered thin films overall the mould, finally pack into non-solid wooden case.

2).As for plastic products, we will pack into standard export cartons or as per customer’s requirements.


Q: How can I get the quotation?
A: We will submit the quotation in 24 hours if getting detailed information during working days.In order to quote for you earlier, please provide us the following information together with your inquiry.
1) 3D Step of Files and 2D Drawings
2) Material requirement
3) Surface treatment
4) Quantity (per order/per month/annual)
5) Any special demands or requirements, such as packing, labels,delivery,etc.

Q: What are the main oversea markets of ERBIWA?
A: Currently ERBIWA regular oversea customers are from Germany, US, Italy, France,UK, Spain, Netherlands, Japan, India, and Demark etc.

Q: How do you control the quality?
1). Materials inspection by IQC, including hardness check, overall dimension and material certification.
2). The first sample inspected by QC, and QC will check as per the parameters list and critical dimensions according to 2D drawing provided by customers.

After dimension checked to be OK, and we will send samples for customer approval to decide if it can go ahead with production;
3). During injection moulding production, our QC will check the injection molded parts every 2 hours, ensure no any rejects and parts are produced in stable quality;
4). FQC will check the products before sending to the warehouse;
5). 100% inspected by OQC before shipping out to customer.

Q: What shall we do if we receive defective products?
A: If receive defective product, please send us the photos, we will feedback to our engineers and QC departments and solve the problems at top urgent.
